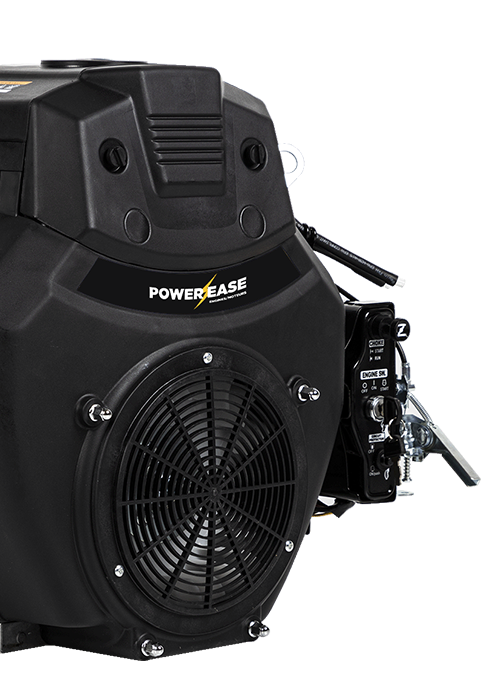

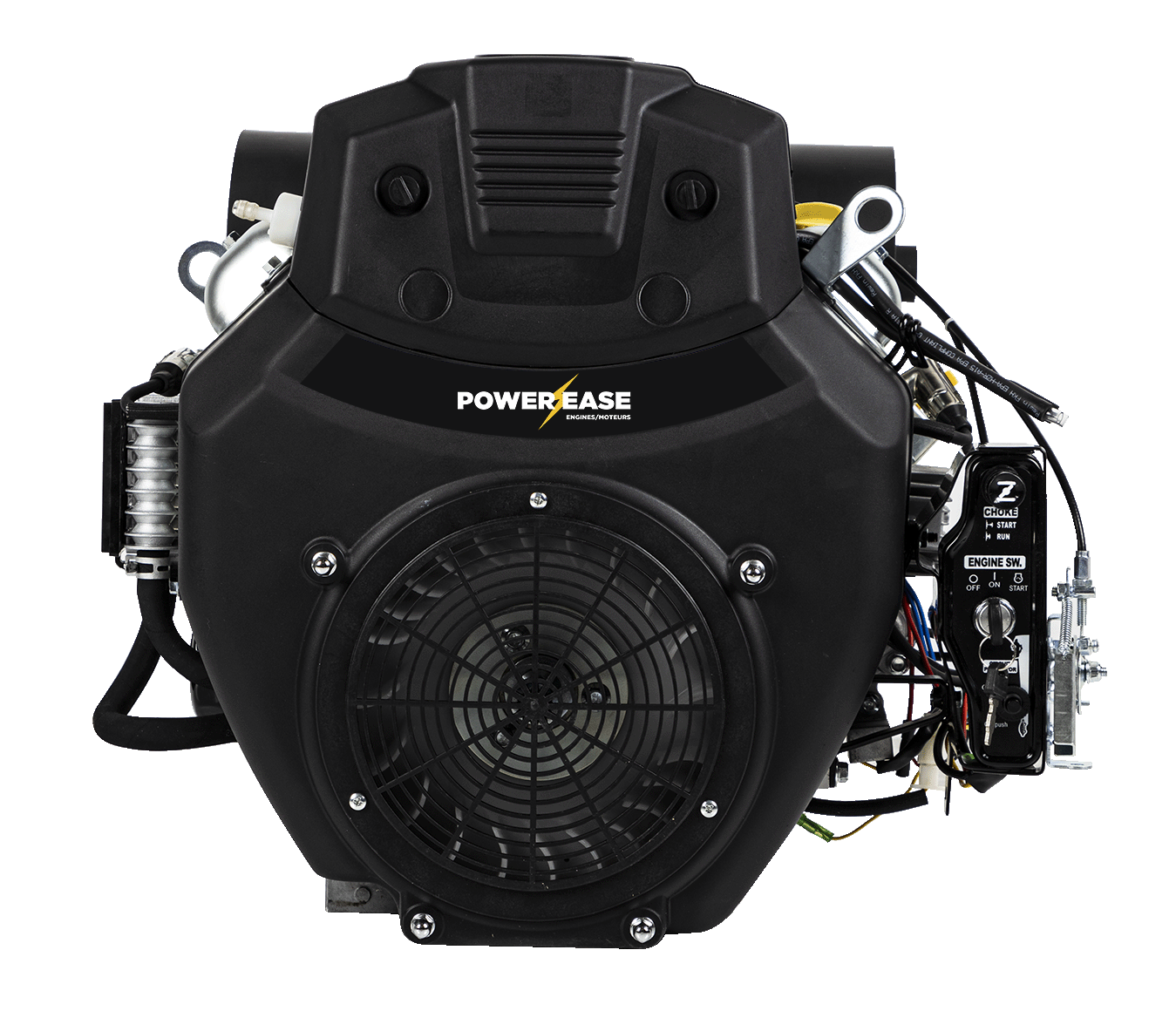

POWEREASE 740 ENGINE
PART NUMBER: 85.575.270
Our largest and most powerful offering among horizontal shaft engines. The 26 horsepower V-Twin engine provides serious power for serious machines.
SPECS
- Model: Powerease R740D
- Displacement: 739 cc
- Net Power: 26HP @ 3,600 RPM
- Net Torque: 49 N*M/36.1 FT-LB @ 2500RPM
- Charge Coil Output: 15 Amp
- Fuel Tank:Auxiliary
FEATURES
- Powerease engines have been used by BE Power Equipment for well over ten years and have proved themselves to be powerful and reliable. Their reputation has earned the trust to be used on a wide range of power equipment.
- V-Twin cylinder design provides more power, lower vibration, longer life, and less maintenance
than traditional single cylinder engines. - Replacement engine for equipment that accepts a keyed, 1” vertical shaft.
- Air cooled, 4-stroke, Over Head Valve (OHV)
design enables higher compression ratio to obtain greater power output. - Uses common SAE 10W30 motor oil to splash lubricate the components in the crankcase.
- Automatic low-oil sensor will shut down the engine if the oil level drops to dangerous levels.
- Fuel recommended to use is regular unleaded that is 86 octane or more. It is best to use fuel
with no ethanol, but ethanol blends of up to 10% is acceptable. - Electric start harness with key system, starter motor and solenoid already set up makes starting the engine very easy.
- Common applications include zero turn mowers, riding mowers, stump grinders and wood chippers.
GALLERY
SPECIFICATIONS
| TITLE | SPECS |
|---|---|
| MODEL | POWEREASE R740D |
| PART # | 85.575.270 |
| CYLINDERS: | 2 CYLINDER V-TWIN |
| ENGINE TYPE | AIR-COOLED 4-STROKE OHV |
| DISPLACEMENT | 739CC |
| STARTING SYSTEM | ELECTRIC |
| IGNITION SYSTEM | TRANSISTORIZED MAGNETO |
| COMPRESSION RATIO | 8.5:1 |
| FUEL TANK CAPACITY | AUXILIARY |
| FUEL | UNLEADED 86 OCTANE OR HIGHER |
| CARBURETOR | HORIZONTAL TYPE BUTTERFLY VALVE |
| LUBRICATION SYSTEM | FORCED SPLASH |
| OIL CAPACITY | 1.5 LITRES (1.6 U.S. QTS) |
| LOW OIL SHUTDOWN | YES |
| SHAFT SIZE | 1" STRAIGHT KEYED |
| KEY WAY SIZE | 1/4" X 2.2" |
| SHAFT ROTATION | COUNTERCLOCKWISE |
| NET TORQUE | 49 N*M/36.1 FT-LB @ 2,500 RPM |
| NET POWER OUTPUT* | 26 HP (19.4 KW) @ 3,600 RPM |
| PTO BOLT SIZE | 3/8-24 UNF |
| BORE X STROKE | 88 mm x 64 mm |
| AIR CLEANER | DUAL ELEMENT |
| VALVE CLEARANCE | 0.06" INTAKE 0.08" OUT AKE |
| DRY WEIGHT | 85 LBS |
| DIMS (LxWxH) | 15" x 18" x 19" |
| CHARGE COIL AMP | 15 AMP |
